Premium Quality Assured
Tested & Certified for Indian Climate Conditions
Home Product railing windows TOT RL 125
BIS Certified
railing
TOT RL 125

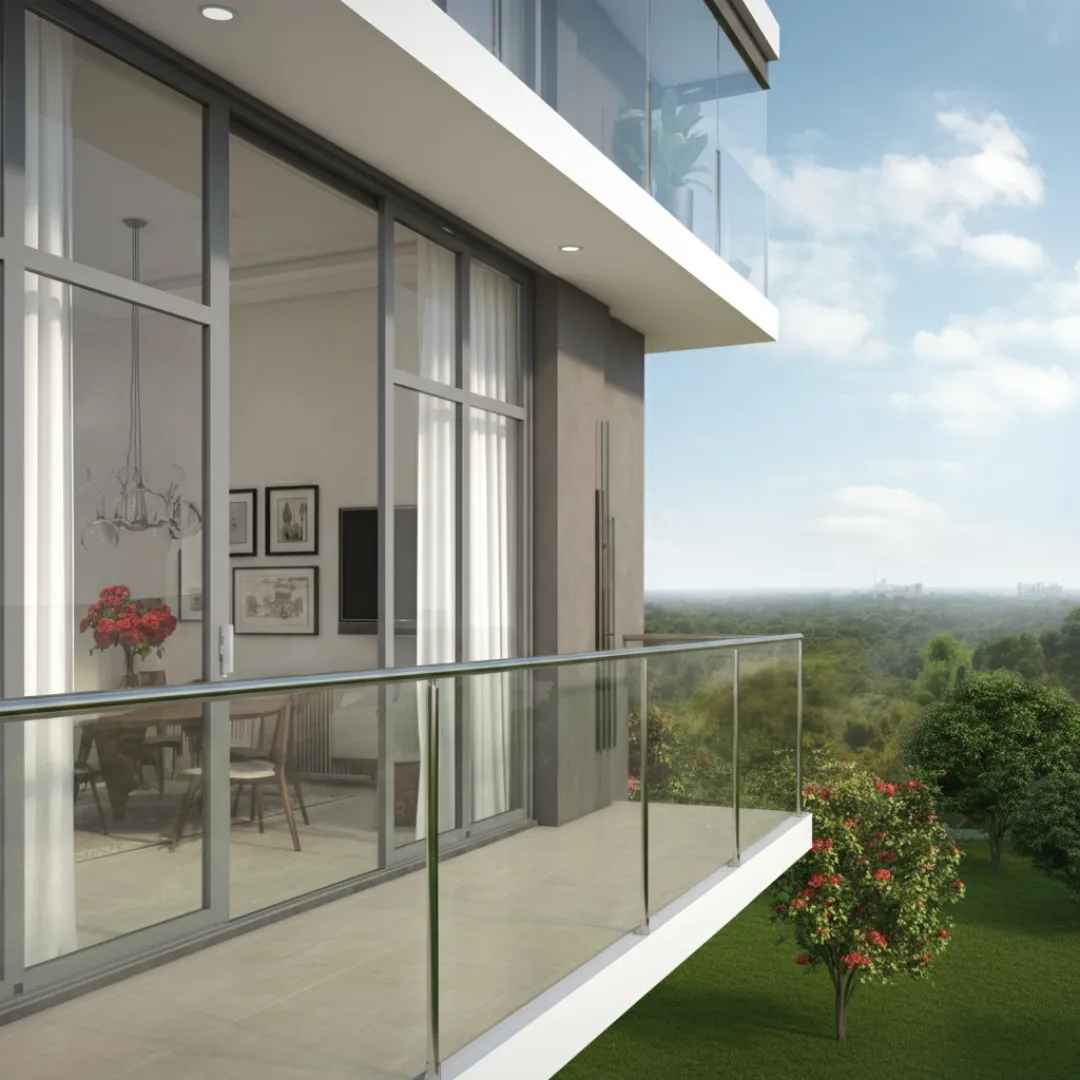

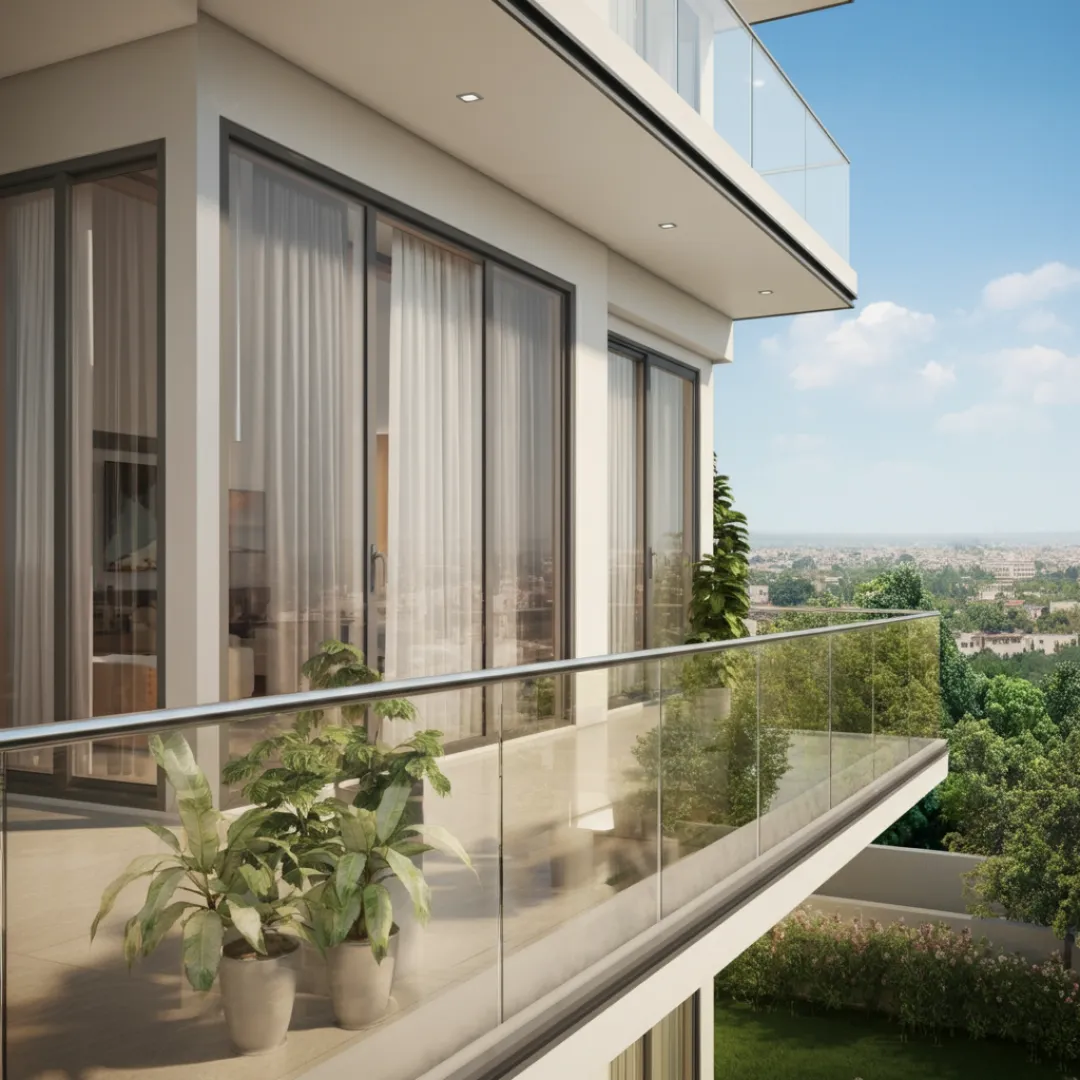

Engineered for impact and elegance, the TOT RL 125 aluminium railing system offers safety with design flexibility — perfect for premium spaces.
Key Features
Functional & Classy Design
Enhances the beauty of your interiors or exteriors
Greater Height
Can be customized up to 4 ft for added safety and style
Glass Options
Wide range of glass customizations for the perfect finish
Product Specifications
Max Height
1200 mm
Glass Thickness
13.52, 15.52, 17.52 mm
Anchor Specifications
HUSA – HR M10 x 105 (Hexagonal Head)
Anchor Spacing
220 mm
Performance Parameters
Wind load 2.0 KPA
Enhanced wind resistance
Live load 0.75 KN/m
Maximum load capacity
Point load 0.50 KN/m
Localized load resistance
Shot bag impact Test 45.4 Kg at 1525 mm height
Superior impact resistance
Joining Detail
| INSTALLATION TYPE | Floor mounted with heavy-duty anchor bolts |
| GLASS SUPPORT | Enhanced structural glazing system |
| HANDRAIL OPTIONS | Premium round handrail Designer square handrail Custom profiles |
| HEIGHT CUSTOMIZATION | Up to 4 feet (1200mm) |
Popular Typology
Choose from our most popular window configurations designed for different architectural needs
Premium Glass Railing
High-Rise Application
Custom Design
Commercial Grade
Frequently Asked Questions
Get answers to the most common questions about our TOT RL 125.
TOT RL 125 offers greater height capacity (up to 1200mm), enhanced wind load resistance (2.0 KPA), thicker glass options (up to 17.52mm), and closer anchor spacing (220mm) for premium applications.
Yes, TOT RL 125 is specifically engineered for high-rise and premium applications with enhanced wind load resistance and impact testing.
Wide range of glass options including clear, tinted, frosted, laminated, and decorative glass in thicknesses from 13.52mm to 17.52mm.
Yes, TOT RL 125 is designed for both interior and exterior use with appropriate finishes and weather-resistant materials.
Installation involves precise floor mounting with heavy-duty anchor bolts at 220mm to 300mm spacing, followed by glass panel installation and handrail attachment. Professional installation is recommended.
TOT RL 125 offers maximum design flexibility with customizable heights up to 4 feet, various glass options, and multiple handrail profiles to suit any architectural requirement.
Still have Questions?
Our experts are here to help you make the right choice for your project.
Our Product Range
Every detail engineered for performance, durability, and design.
