railing
TOT RL 80

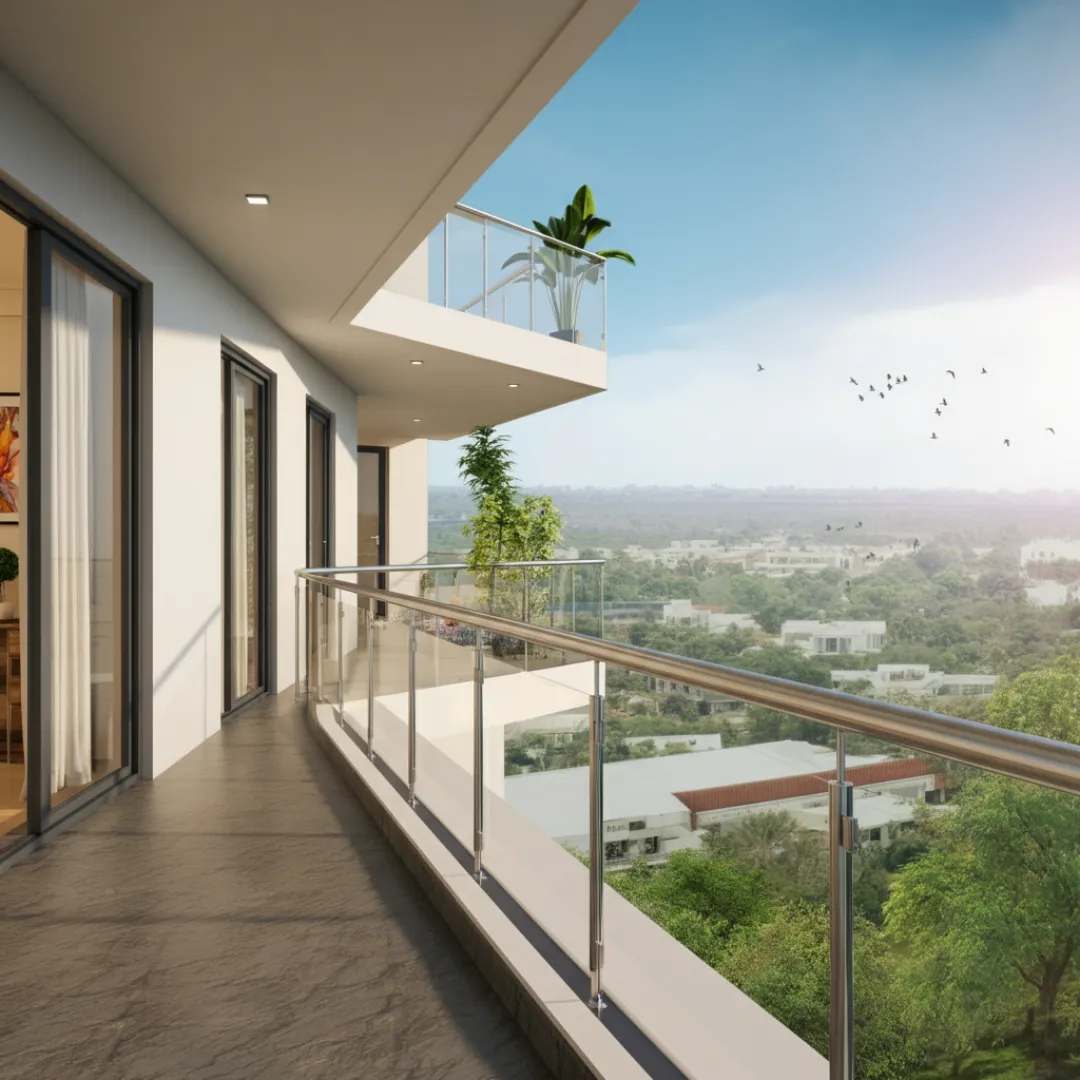

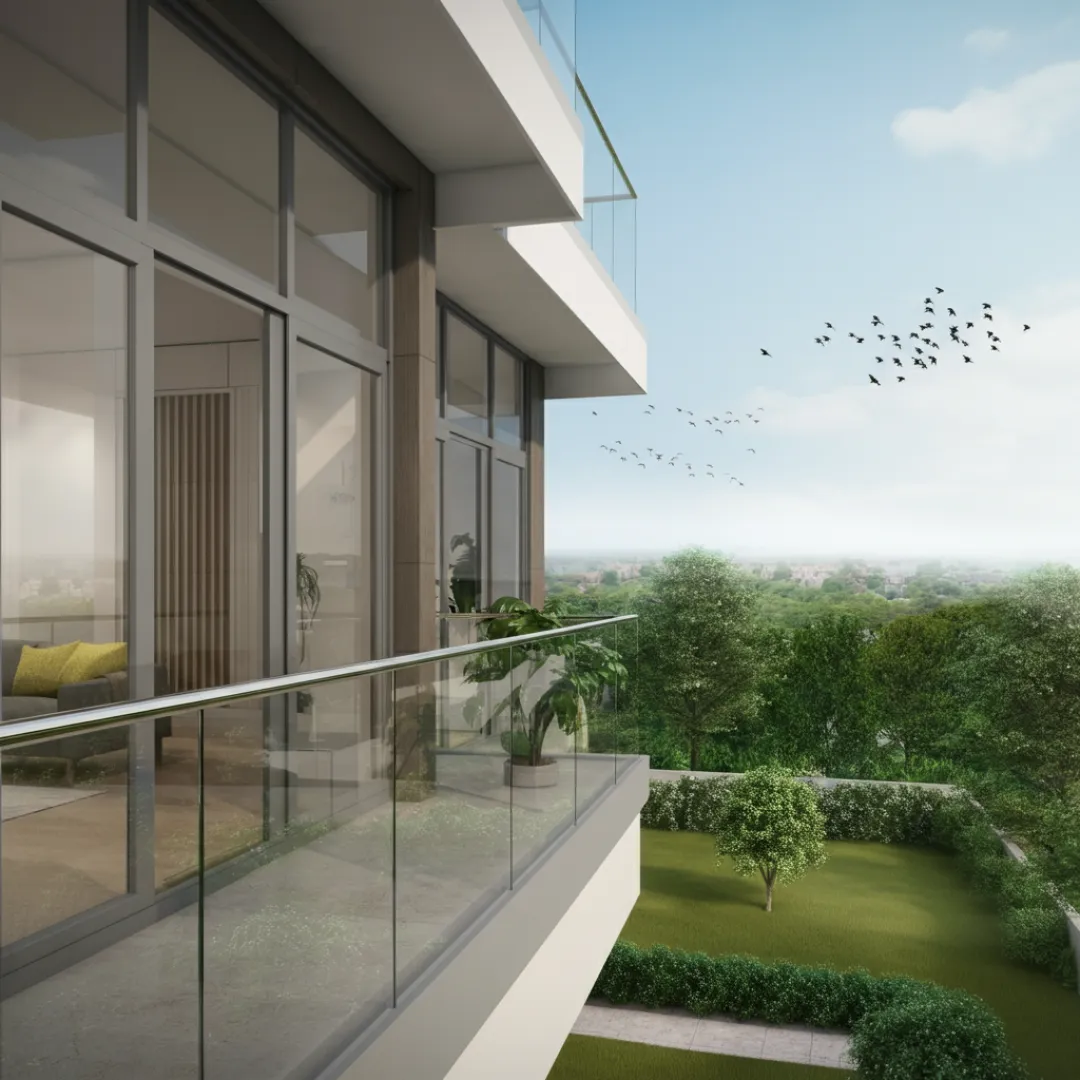

Strong, sleek, and dependable — the TOT RL 80 aluminium railing system combines safety with style, making it ideal for residential, commercial, and industrial applications.
Key Features
High Strength
Tested to withstand up to 75 KG per meter of force for maximum safety
Functional & Classy Design
Elegant, durable, and available with multiple top handrail options to suit your style
Continuous Railing
Seamless look for modern spaces
Product Specifications
Max Height
1000 mm
Glass Thickness
11.52, 12.52, 13.52 mm
Anchor Specifications
HUSA – CR M10 x 105 (Counter Sunk Head)
Anchor Spacing
300 mm
Performance Parameters
Wind load 1.5 KPA
Tested for structural stability
Live load 0.75 KN/m
Maximum load capacity
Point load 0.50 KN/m
Localized load resistance
Shot bag impact Test 45.4 Kg at 1525 mm height
Safety impact resistance
Joining Detail
| INSTALLATION TYPE | Floor mounted with anchor bolts |
| GLASS SUPPORT | Continuous structural glazing |
| HANDRAIL OPTIONS | Round handrail Square handrail Flat top |
Popular Typology
Choose from our most popular window configurations designed for different architectural needs
Glass Railing
Baluster Railing
Combined Design
Frequently Asked Questions
Get answers to the most common questions about our TOT RL 80.
The system supports laminated glass in thicknesses of 11.52mm, 12.52mm, and 13.52mm for safety and durability.
Yes, TOT RL 80 is designed with weather-resistant materials and finishes, making it ideal for outdoor balconies, terraces, and commercial spaces.
Minimal maintenance is required - periodic cleaning and inspection of anchor points and glass panels is sufficient.
The standard maximum height is 1000mm, but custom heights can be accommodated based on specific project requirements.
